Projector Lift

Dimensions:

Minimum Dimensions Lift Closed
M9201400 – 576x145x555 mm. (WxHxD)
M9201404 – 576x230x555 mm. (WxHxD)

Dimensions Lift Opened
M9201400 – 576x960x555 mm. (WxHxD)
M9201404 – 576x1960x555 mm. (WxHxD)

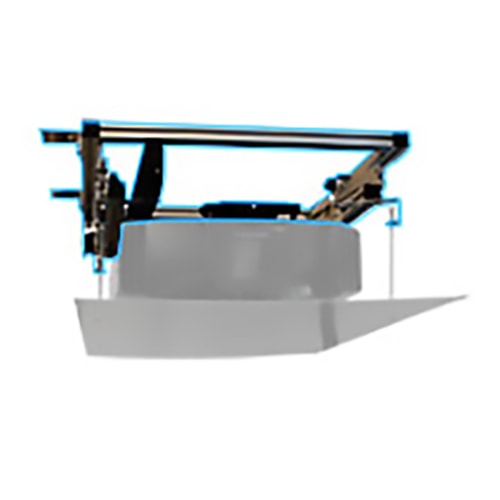

It is sometimes necessary, in a living room or a bedroom for example, to hide the video-projector away when it’s not in use. Dreamvision has therefore designed a motorized lift that goes between the ceiling and the false ceiling, where the lift, the projector and the cables will be removed from sight, thus granting the best aesthetic and practical solution.

Part Number
M9201400
M9201404

Power Supply
220-230 V 50 Hz

Maximum Consumption
184 W

Torque
20 Nm

Motor Speed
17 Rpm

Maximum Size Fixing Points of Projector
370×400 mm. (WxD)

Maximum Load
30 Kg

Maximum Overall Size of Projector
570x600x275 mm. (WxDxH)

Net Weight
M9201400 – 12 Kg
M9201404 – 15 Kg

Cable Gathering System
20×18 mm. (WxH)

DESCRIPTION

It is sometimes necessary, in a living room or a bedroom for example, to hide the video-projector away when it’s not in use. Dreamvision has therefore designed a motorized lift that goes between the ceiling and the false ceiling, where the lift, the projector and the cables will be removed from sight, thus granting the best aesthetic and practical solution.

FULL SPECIFICATION

Part Number
M9201400
M9201404

Power Supply
220-230 V 50 Hz

Maximum Consumption
184 W

Torque
20 Nm

Motor Speed
17 Rpm

Maximum Size Fixing Points of Projector
370×400 mm. (WxD)

Maximum Load
30 Kg

Maximum Overall Size of Projector
570x600x275 mm. (WxDxH)

Net Weight
M9201400 – 12 Kg
M9201404 – 15 Kg

Cable Gathering System
20×18 mm. (WxH)
